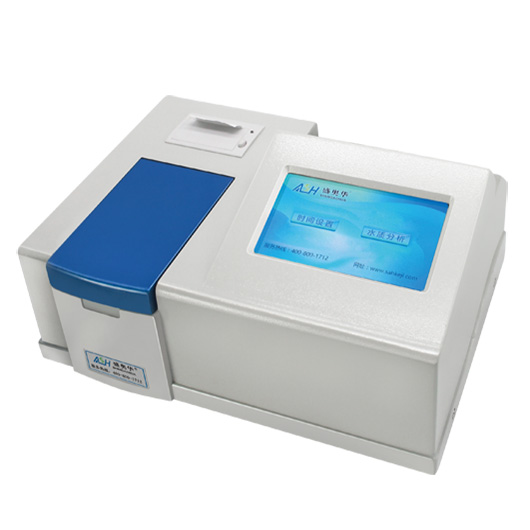

SH-1600A Water Quality Heavy Metal Tester

This water quality heavy metal detector uses a color touch screen display, simple operation, automatic switching measurement items, support colorimetric and colorimetric tube two colorimetric methods.




Online Consulting

Online Message

Features

  • Features
  • Technical Specifications
  • Standard Configuration
  • Data download

Features

Technical Specifications

Standard Configuration

Data download

-Accurately determine copper, total chromium, hexavalent chromium, zinc, iron, lead, nickel, PH and DO indicators in various water bodies
-Support colorimetric and colorimetric tube two colorimetric methods (optional)
-5 inch full touch color screen, Chinese menu
-Simple operation, automatic switching of measurement items, customized measurement items according to user requirements
-Memory 100 curves, 15 standard curves, 85 expansion curves can be freely applied under different conditions, different waste water and other conditions
-Temperature setting room temperature ~ 200 °C, the user can adjust according to need, more compatible
-The instrument can calculate the storage curve according to the standard sample
-Built-in printer can print current data, query and print historical data
-USB interface, connect the computer to the host operation, automatically generate a chart (optional)
-Cold light source, narrow band interference, light source lifetime up to 100,000 hours
-Digestion power automatically adjusts with the load quantity, intelligent constant temperature control, delay protection
-Temperature, time can be adjusted and saved
-First domestic rear-mounted splitter technology to avoid external light interference and test data is more stable and reliable


Measurement items

lead/copper/iron/nickel/zinc/hexavalent chromium/total chromium/PH/DO


Display mode


5-inch full touch color screen color

comparison method

cuvette / colorimetric tube







Measuring range

Cu:0-2mg/L

Pb:0-4mg/L

Ni:0-5mg/L

Tcr:0-2mg/L

Cr:0-2mg/L

Fe:0-5mg/L

  Zn:0.02-1mg/L

PH:0-14

DO:0-20mg/L

Measurement error

≤±8%

PH:±0.02

   DO:±0.3mg/L

Accuracy

±8%

Light source stability

≤±0.005/20min

Storage data

 5 million

Printer

Thermal Printer

Ambient humidity

 Relative humidity ≤85% (non-condensing)

Rated voltage

AC220±10%/50HZ

Net weight

2.5Kg

Rated power

15W





Intelligent digestion device, test tube rack, water cooling rack, solid reagent, reaction tube, cuvette holder, semi-automatic dosing device, etc.
